Waterborne Coating

Products

SCC-D225L

Especially suitable for PCBA waterproof performance of industrial control circuit boards, bluetooth speakers, electric vehicle control systems, etc., SCC-D225L not only provides protection against moisture, but also provides excellent protection for various rigorous environments. Waterproof, anti-salt water effect. Through simple coating on the PCBA surface of the product. Unparalleled protective effect can be obtained.

SCC series products mainly provide the surface protection function of PCBA circuit boards. Currently, they are used in many 3C products for long-term immersion in seawater or sweat, and provide industry-leading standards. It can provide very good underwater normal operation function. The accumulation and experience of GiantYao R&D team over the years have brought fantastic user experience to tens of millions of electronic products.

Features

  • Material main components: polymer modified polyethylene polymer
  • Material usage: hand coating, selective dispensing by dispensing machine
  • Material viscosity can be adjusted according to customer requirements
  • Material specifications: acid resistance, alkali resistance, corrosion resistance, chemical resistance, breathable (waterproof/sweat proof/seawater proof/rain proof)
  • Anti-voltage breakdown capability: DC voltage 0-2000v, DC current 0-10A
  • Recommended thickness: 50um consumer pcba, 100-200um industrial control board
  • The film can be removed, and the coating can be applied by hand after rework
  • Contains nano-color paste, you can use a highlighter to check whether it is evenly sprayed on each component
  • The validity period can be adjusted according to customer requirements, usually 2 years for consumer products and 8-10 years for industrial control boards
  • Material construction protection position: PCBA board component position, can also be used in semi-finished product assembly, pad position, connection seat position, external connection position

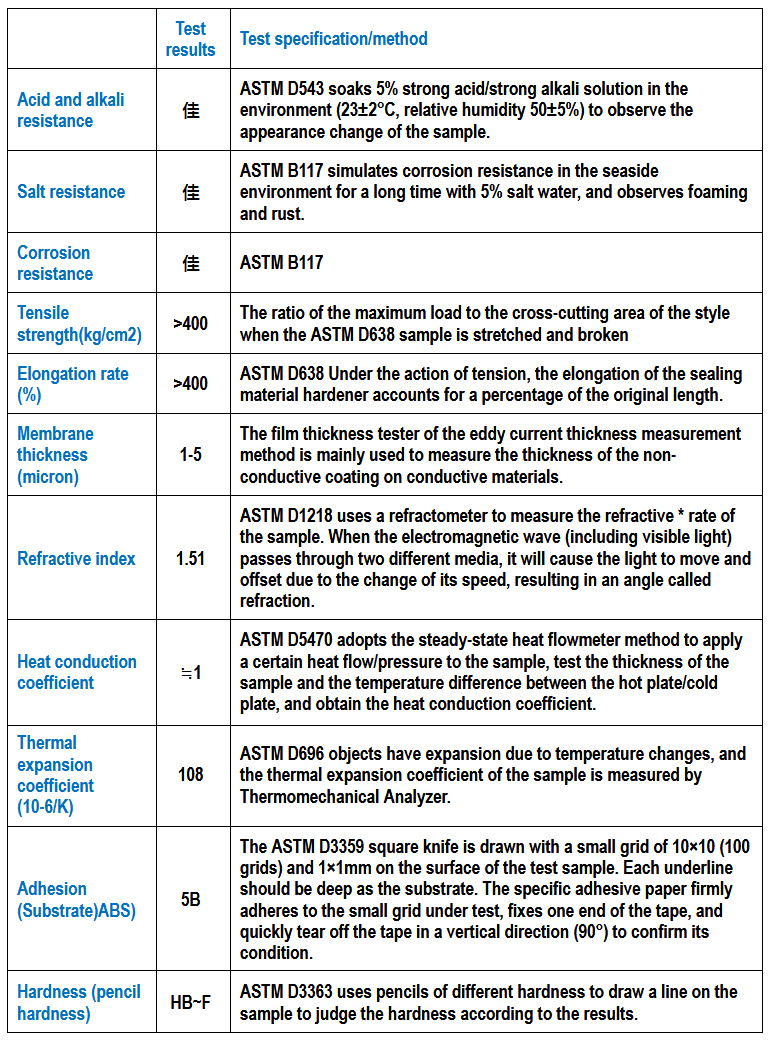

Typical Properties

Effect of SCC coating

SCC-D225L Dispening Construction
